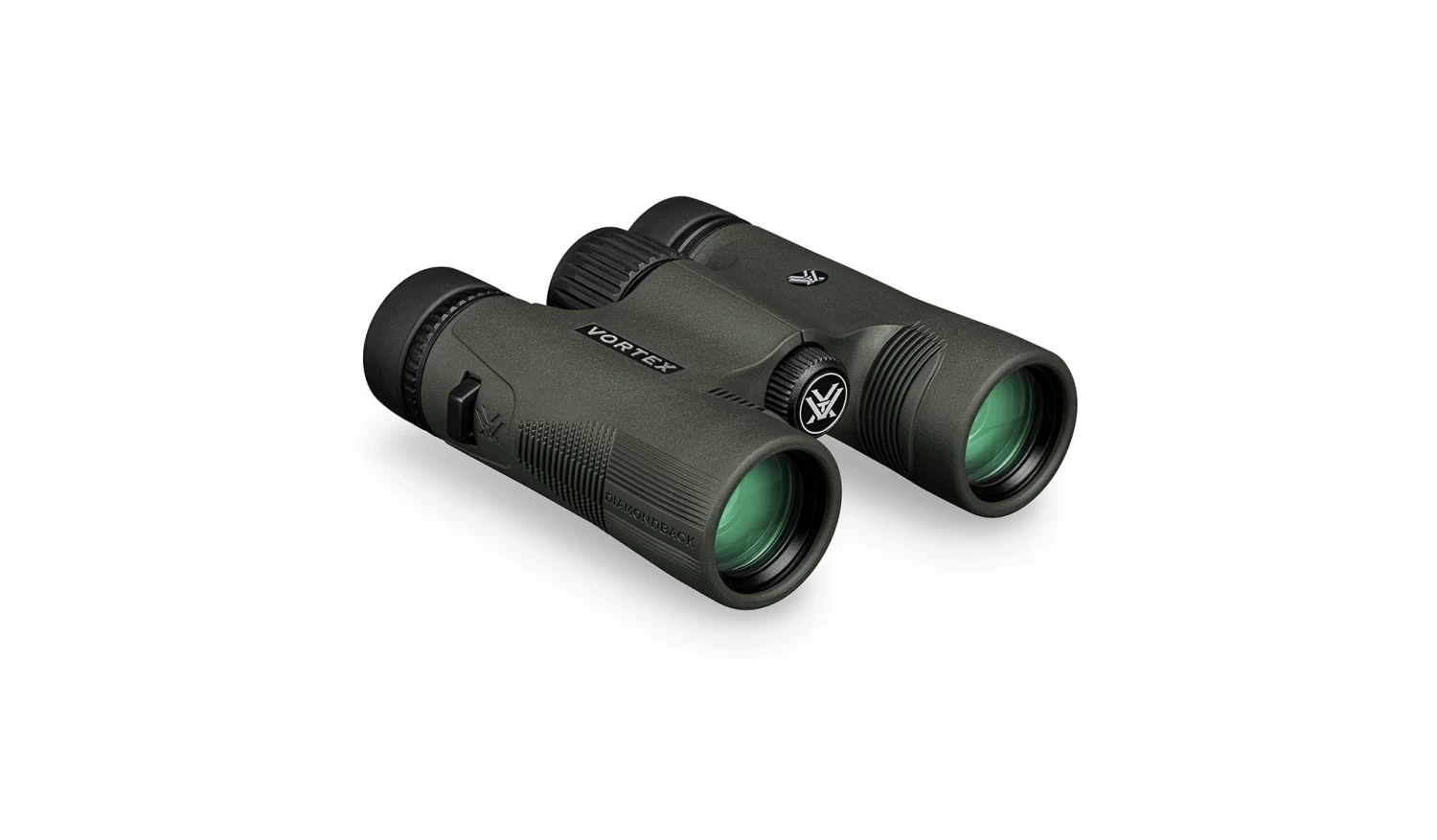

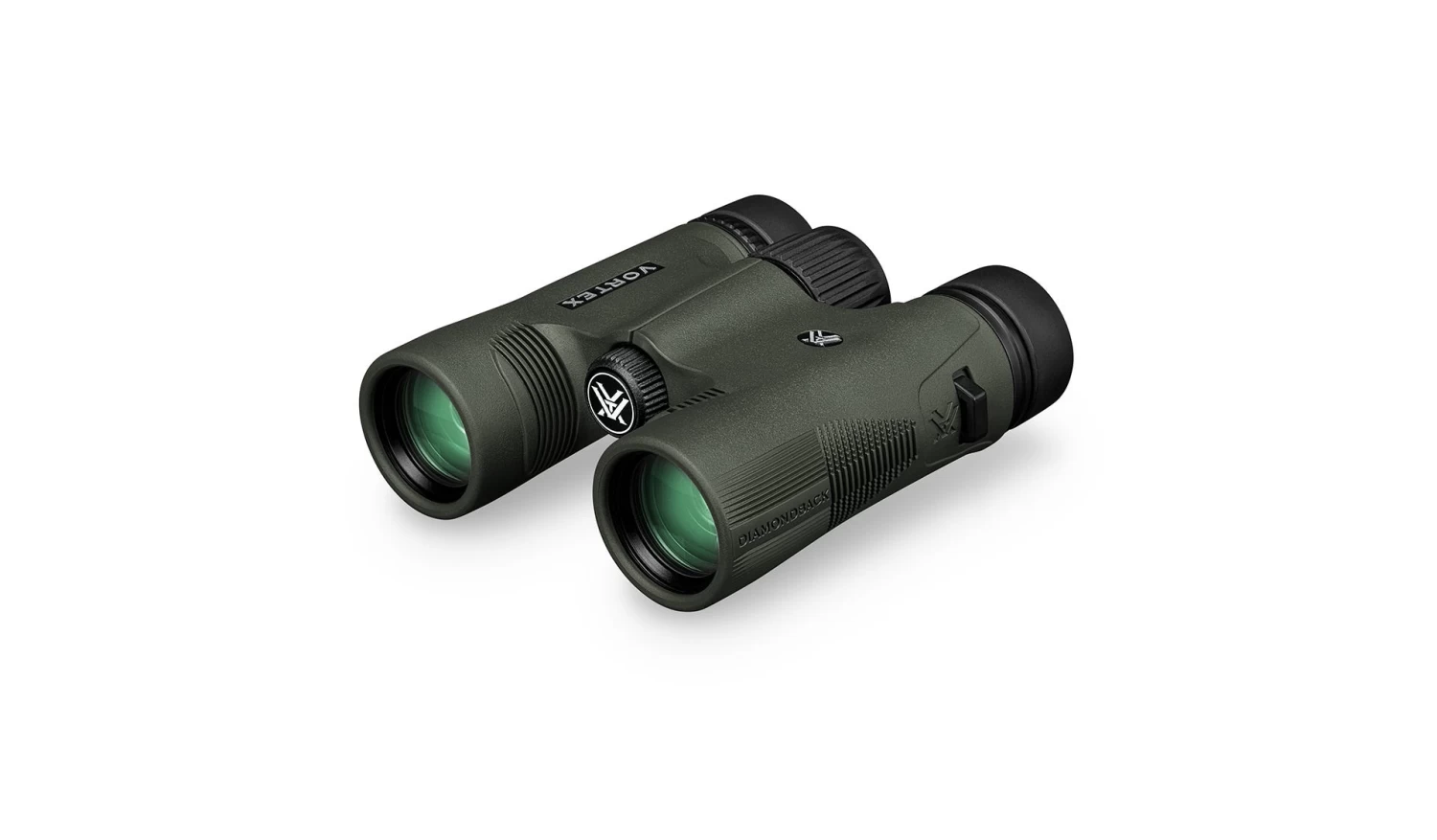

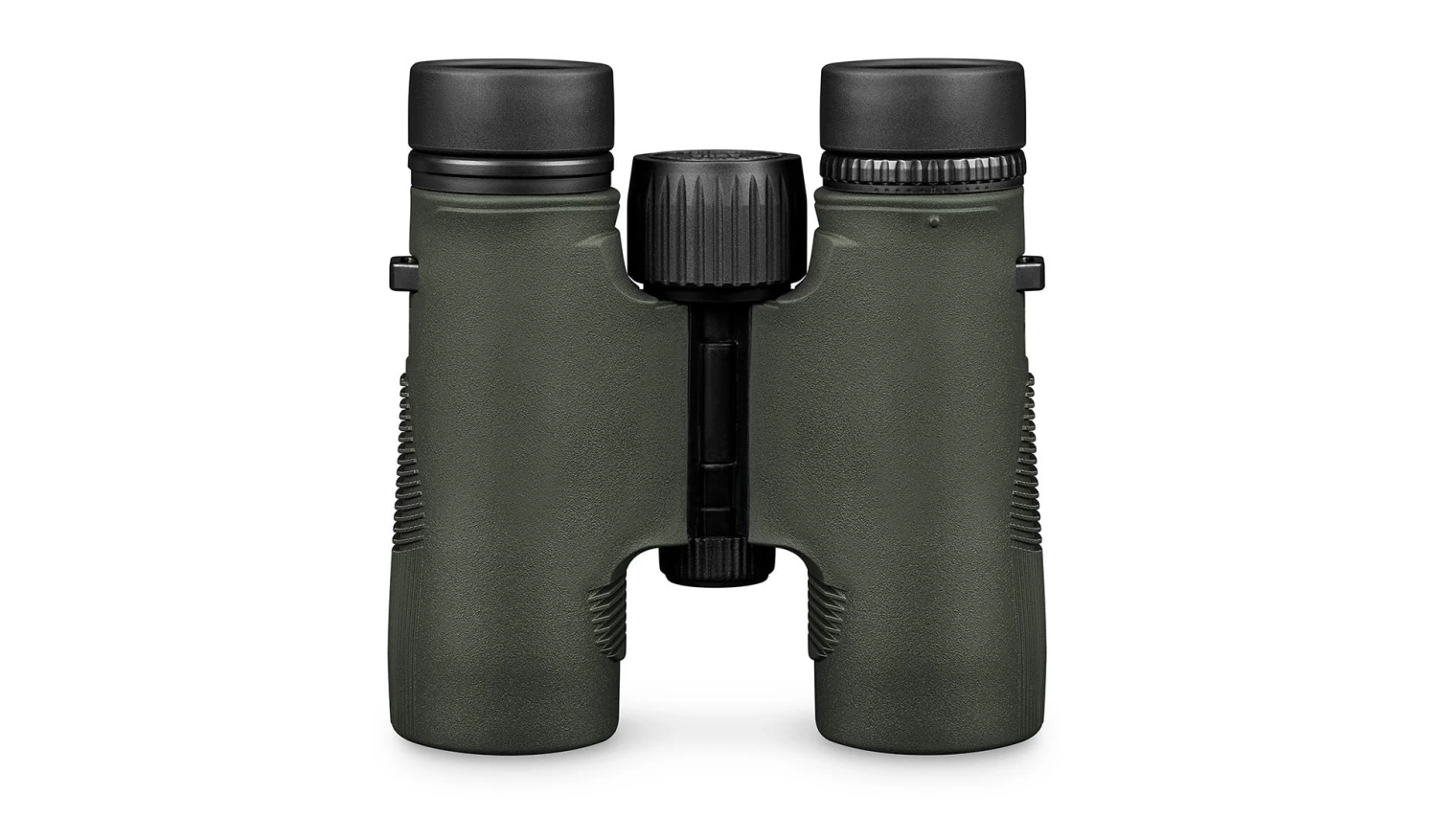

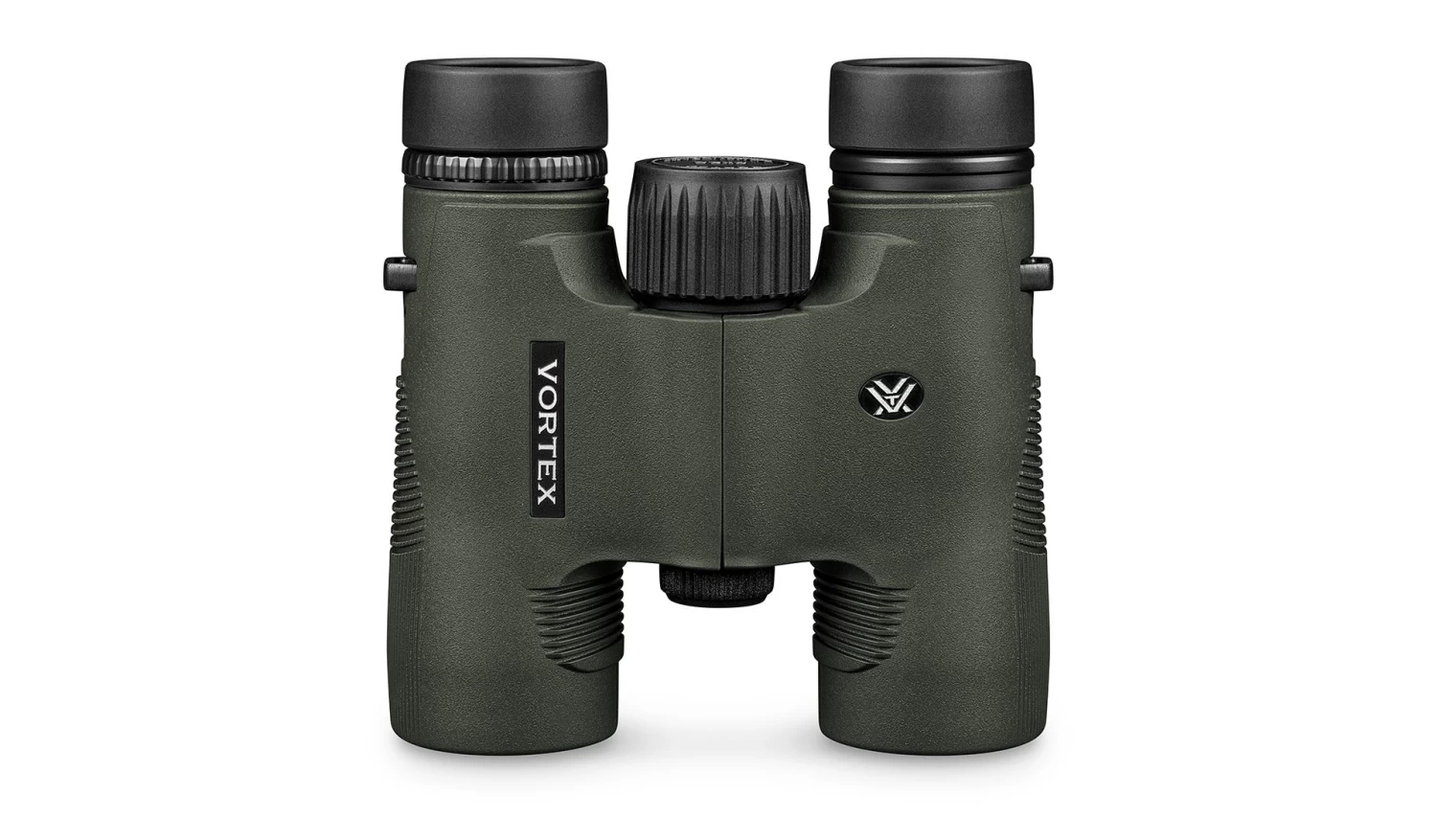

Vortex Diamondback Binocular HD 8×28

The Diamondback® HD smashes the scale of price vs
performance, delivering a rock-solid optic that optically punches high above
its class.

Included in the Box

Soft side carry case

Soft side carry case strap

Comfort neck strap

Tethered objective lens covers

Rainguard Eyepiece Cover

Lens Cloth

Magnification 8x

Objective Lens Diameter 28 mm

Eye Relief 18 mm

Exit Pupil 3.5 mm

Linear Field of View 332 feet/1000 yards

Angular Field of View 6.2 degrees

Close Focus 6 feet

Interpupillary Distance 55-72 mm

Height 4.6 inches

Width 4.5 inches

Weight 14 oz

The Diamondback® HD smashes the scale of price vs
performance, delivering a rock-solid optic that optically punches high above
its class. The included GlassPakTM binocular harness keeps your glass close at
hand, ready to deploy at a moment’s notice, all while providing protection and
significantly more comfort than traditional neck straps.

OPTICAL FEATURES

HD Optical System Optimized with select glass elements to
deliver exceptional resolution, cut chromatic aberration and provide
outstanding color fidelity, edge-to-edge sharpness and light transmission.

Fully Multi-Coated Increase light transmission with multiple
anti-reflective coatings on all air-to-glass surfaces.

Dielectric Coating Multi-layer prism coatings provide
bright, clear, color-accurate images.

ArmorTek ® Ultra-hard, scratch-resistant coating protects
exterior lenses from scratches, oil and dirt.

CONSTRUCTION FEATURES

Rubber Armor Provides a secure, non-slip grip, and durable
external protection.

Waterproof O-ring seals prevent moisture, dust and debris
from penetrating the binocular for reliable performance in all environments.

Shockproof Rugged construction withstands recoil and impact.

Fogproof Argon gas purging prevents internal fogging over a
wide range of temperatures.

Roof Prism Valued for greater durability and a more compact
size.

CONVENIENCE FEATURES

Adjustable Eyecups Twist up and down for comfortable viewing
with or without eyeglasses.

Center Focus Wheel Adjusts the focus of both binocular
barrels at the same time.

Diopter Adjusts for differences in a user’s eyes. Located on
right eyepiece.

Tripod Adaptable Compatible with a tripod adapter, allowing
use on a tripod or car window mount.
